Features
·Max sampling rate: 100MHz @ 3 channels, 50MHz @ 6 channels, 32MHz @ 9 channels, 16 MHz@ 16 channels

·Large sampling depth and supported compression

·Built-in PWM generator

·Compatible USB 2.0 / 3.0 interface

·Powerful software and easy to use

·Online automatic updates

Specifications
·Input channels: 16 MAX

·Max sampling rate: 100 m

·Measurement bandwidth: 20 m

·Min pulse width captured: 20 ns

·Max sampling depth: 10 G / channel

·Input voltage range: -50 ~ +50 V

·Input impedance: 220 KΩ, 12 pF

·Adjustable threshold voltage: -4 ~ +4 V, step: 0.01 V

·PWM channels: 2

·PWM frequency range: 0.1 ~ 10 MHz

·PWM frequency adjust step: 10 ns

·PWM pulse width step: 10 ns

·PWM output voltage: +3.3 V

·PWM output impedance: 50 Ω

·Standby current: 100 mA

·Max operating current: 150 mA

·Dimensions: 95 x 55 x 23 mm

·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit)

·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,

LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...

Specification

Product Name

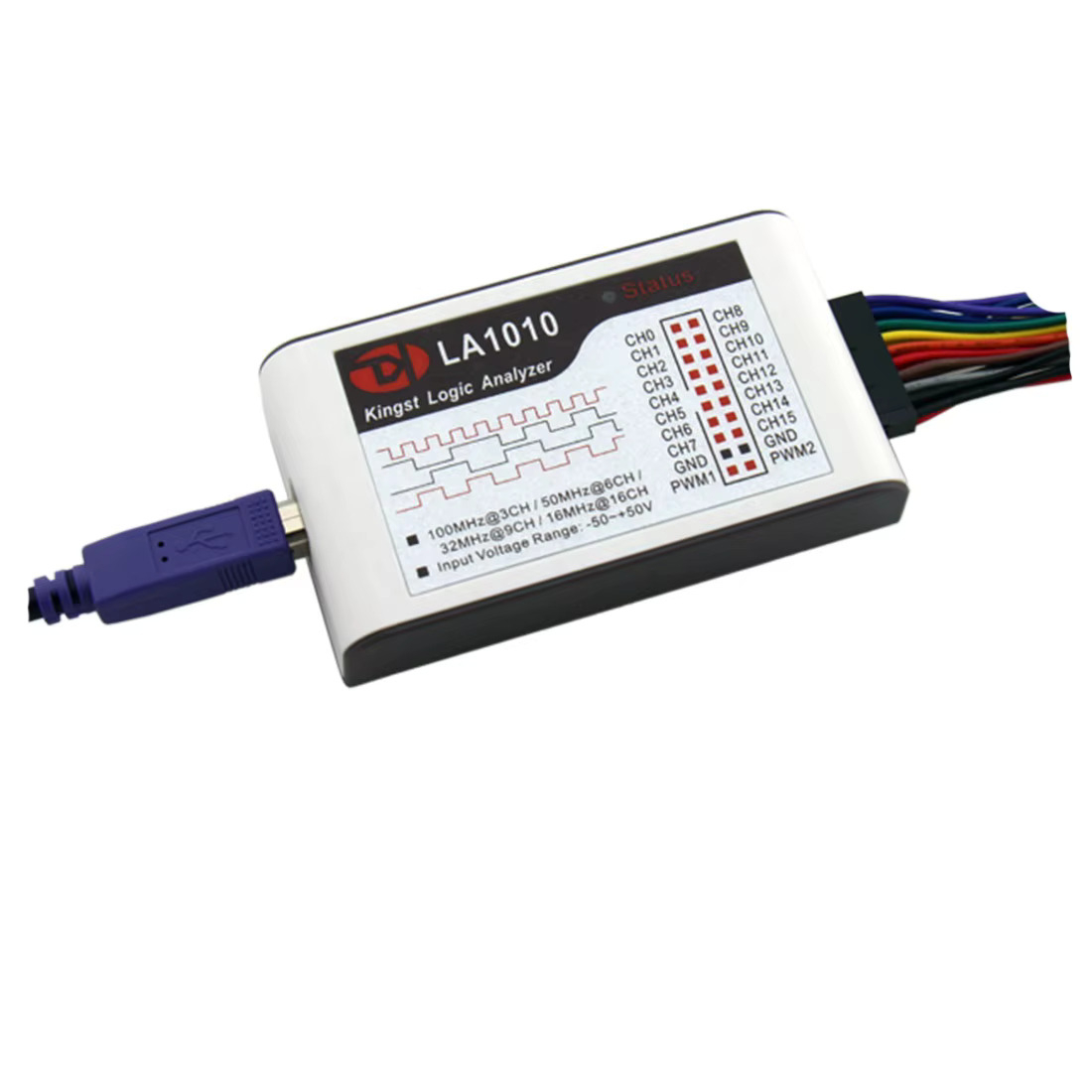

LA1010

Bandwidth

100 MHz

·Input channels

16 MAX
