Description

This is the cheapest and useful debugging tool for digital signal analyzing, helps you fully analyzing the UART, IIC, SPI, CAN all of these interfaces.

If you do not want to start with an expensive oscilloscope, it will be another good choice.

A total of eight digital channels, the voltage range of 0V ~ 5.5V(the voltage threshold is considered to be low below 1.5V, 1.5V above is considered high), can automatically analyze UART, IIC, SPI, and much other standard protocol.

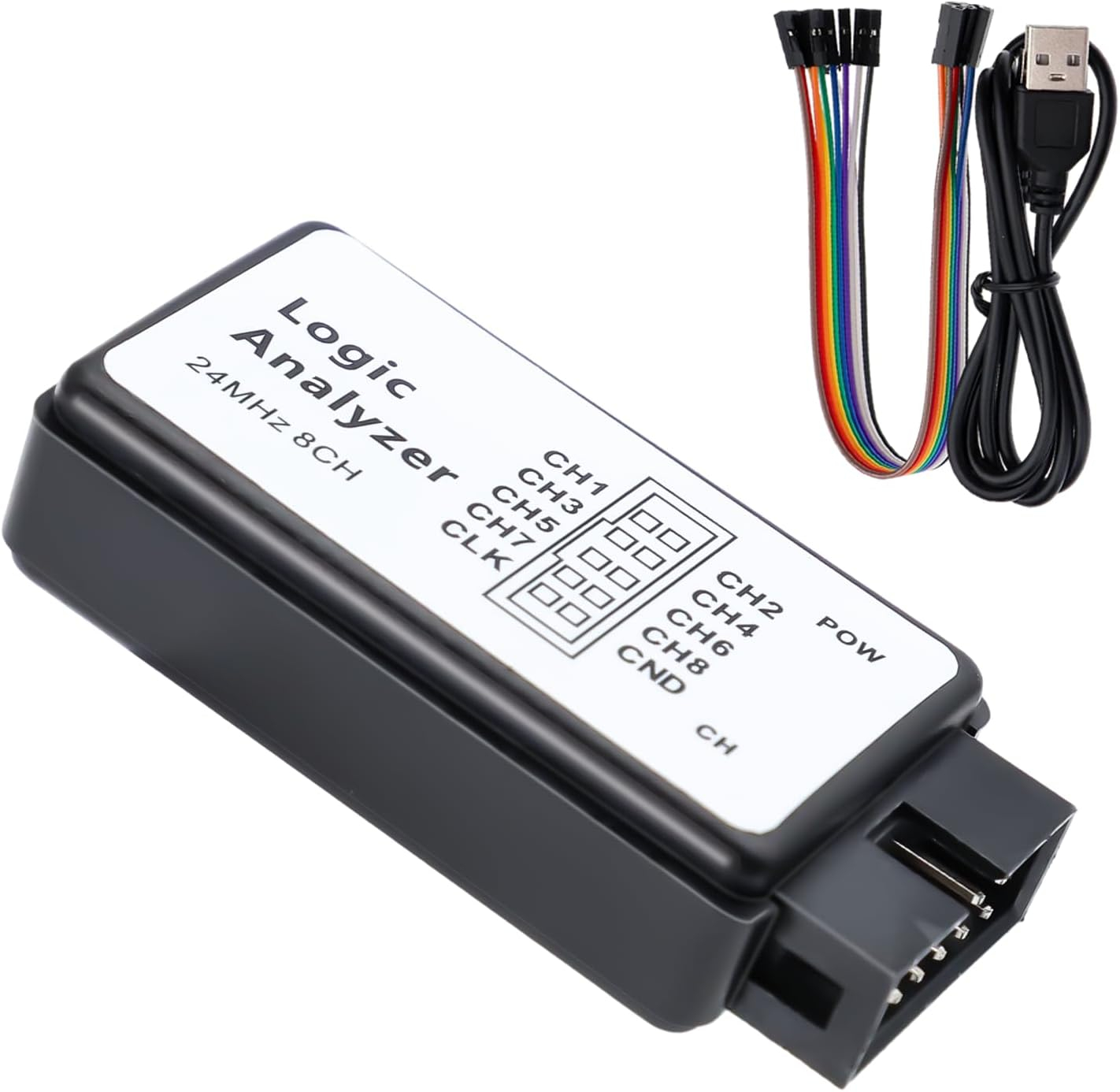

This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good economic option making it a great tool for quickly diagnosing most communication issues we encounter.

The analyzer chips include Female-To-Female jumper wires.

This logic analyzer works with sigrok “ an open-source, cross-platform signal analysis software suite.

If you do single-chip development, ARM system development or FPGA development then we strongly recommend you buy this product. Especially do UART, SPI, IIC communication debugging, absolutely let you get twice the result with half the effort.

Features

Logical light indication: a small light indicate CHO electrical level.

Input Features 5PF,100K Ohm.

USB power supply; USB logic analyzer for monitoring, analyzing and debugging digital circuits

8-Channels USB logic analyzer with a 24Mhz sampling frequency

Can analyze UART, IIC, and SPI, etc automatically

Great for MCU, ARM system and FPGA development

Input Voltage: 0V ~ 5.5V

Threshold Voltage: 1.5V

The sampling rate can be set as below:

24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

Data upload real-time, the max of the depth of the collection is 10T, far from the practical need.

Interface: UART, I2C, SPI, CAN

Dupont Cable Length: 20cm

USB Cable Length: 50cm

Size: 54mm x 27mm x 15mm
