Feature:

1. Rising and falling edge trigger.
2. Compact rectangle shell, 2.8inch display screen, with buttons on the side.
3. The oscilloscope can store files in BMP, DAT, BUF or CSV format.
4. Save/read waveform images using built-in flash memory.
5. Output test signal: 10Hz-1MHz (1-2-5 step sequence).

Specification:

Item Type: Oscilloscope

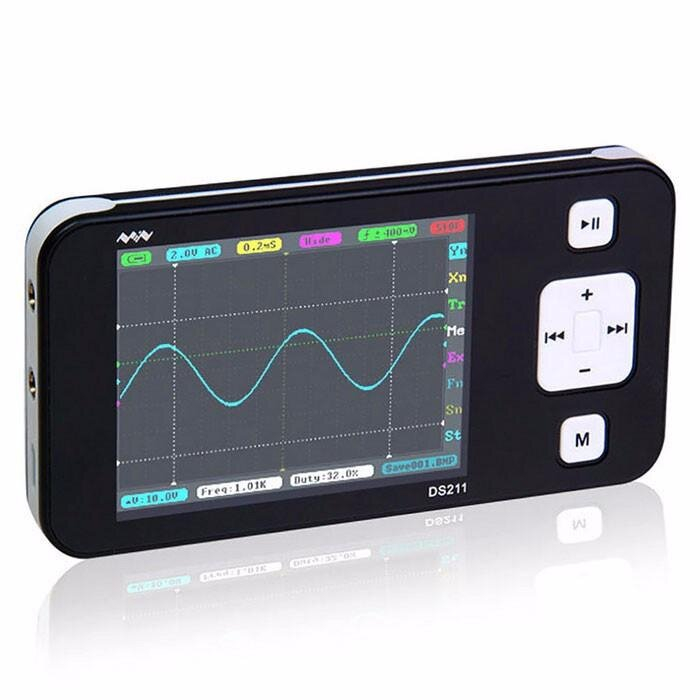

Model: DS211
MCU: STM32F103VC
ADC: ADC inside the MCU
Number of Channels: 1 analog channel
Analog Bandwidth: 200KHZ
Maximum Sampling Rate: 1Msa/S
Maximum Storage Depth: 8K
Horizontal Scanning Speed: 1-2-5 step
Input Impedance: >500KΩ
Coupling Mode: DC/AC
Trigger Type: Rising, Falling Edge Trigger
AUTOFIT: AUTOFIT
Signal Output Type: Square Wave, Sine Wave, Triangle Wave, Sawtooth Wave
Measurable Value: Signal Frequency, Period, Duty Cycle, Voltage Peak Value, Effective Value, Maximum Value, Minimum Value, Average Value
Storage: 8Mb built-in U disk
Number of Installable APP: 1
Operation: Buttons
USB Interface: Micro USB
Battery: 500mAh
Screen Size: 2.8 inch
Screen Resolution: 320x240
Oscilloscope Size: Approx 106.5x55.7x11.5mm / 4.19x2.19x0.45in
Weight: Approx 66g
Open Source Situation; Application Layer Open Source
Certification: CE/FCC

Package List:

1 x Oscilloscope1 x USB Cable1 x Manual1 x Probe
