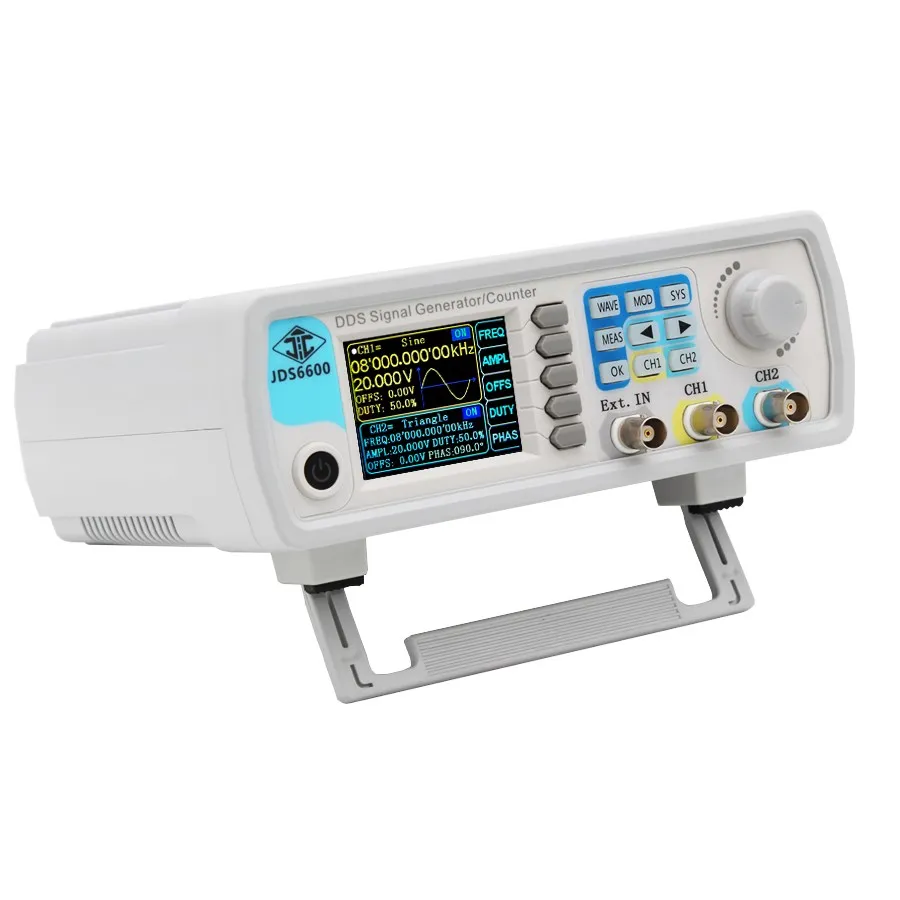

JDS6600 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc. The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

►320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2

►Ability to reproduce patterns of custom waveform

►Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation

►60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits

►Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%

►With digital signal output function, CMOS output range 0~10V

►The model sold on this link is JDS6600-60M,The maximum sine wave frequency is 60MHz, and the maximum square wave is 25MHz, 266MSa/s sampling rate and 14bits vertical resolution

►Equivalent performance-phase difference 360°continuously adjustable.Equivalent performance dual channels can simultaneously output the same or different function signals or arbitrary waveform signals, all parameters can be adjusted independently, and the phase difference between the two channels is continuously adjustable from 0-359.9 °.

►Trigger functions-Four trigger modes.You can use sine wave, square wave, saw-tooth wave or arbitrary wave to generate pulse train. The number of pulse periods is continuously adjustable between 0-1048575.

►Pulse width-precisely adjustable.With independent operation interface, the function is clear; with independent control switch, it is convenient to control. Adjustment range: 25ns-4000s; pulse offset continuously adjustable between 0% -120%; pulse amplitude can continuously adjust between 0-10V, and be accurate to 0.01V.

►Arbitrary waveform can be draw. Provide free host computer software and communication protocol, use the host computer software to draw arbitrary waveforms; use the communication protocol to secondary development programming; all functions of the instrument can be controlled by the host computer software.

Frequency Characteristics

• Sine wave frequency range: 0~15MHz

• Square wave frequency range: 0~15MHz

• Triangle wave frequency range: 0~15MHz

• Pulse wave frequency range: 0~6MHz

• TTL digital wave frequency range: 0~6MHz

• Arbitrary frequency range: 0~6MHz

• Pulse width adjustment range: 100nS~4000S

• Square wave rise time: ≤25ns

• Minimum frequency resolution: 0.01uHz（0.00000001Hz）

• Frequency accuracy: ±20ppm

• Frequency stability: ±1ppm/3hours

Waveform Characteristics

• Waveform types: Sine, Square, pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multi-sonic wave, symplectic pulse, Lorenz pulse, and 60 arbitrary waveforms.

• Wave length: 2048 points

• Waveform sampling rate: 266MSa/s

• Waveform vertical resolution: 14-bits

• Sine wave harmonic suppression: ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)

• Total harmonic distortion: <1%(20Hz~20kHz,0dBm)

• Square wave and pulse wave overshoot: ≤5%

• Pulse wave duty cycle adjustment range: 0.1%~99.9%

• Partial sine wave duty cycle adjustment range: 0.1%~99.9%

• Saw-tooth wave linearity: ≥98%(0.01Hz~10kHz)

Output Characteristics

• Sine wave amplitude range:

  • Frequency ＜ 11MHz: 2mVpp~20Vpp

  • 11MHz ≤ Frequency ＜ 31MHz: Not applicable for JDS6600-15M

  • 31MHz ≤ Frequency: Not applicable for JDS6600-15M

• Square wave and triangle wave amplitude range:

  • Frequency ≤ 10MHz: 2mVpp~20Vpp

  • 10MHz ≤ Frequency ≤25MHz: Not applicable for JDS6600-15M

• Amplitude resolution: 1mV

• Amplitude stability: ±0.5%/5 hours

• Flatness of amplitude: ±5%(<10MHz); ±10%(>10MHz)

• Output impedance: 50Ω±10% (typical)

• Protection: All signal outputs can work within 60 seconds when the load is short-circuited.

• DC offset adjustment range: |Offset|≤10-amplitude/2

• Offset resolution: 0.01 V

Phase Characteristics

• Phase adjustment range: 0~359.9°

• Phase resolution: 0.1°

TTL/CMOS Output

• Low level: <0.3V

• High level: 1V~10V

• Level rise/fall time: ≤20ns

External Measurement Function

• Frequency meter function: 1Hz~100MHz

• Measurement accuracy: Gate time 0.01S~10s continuous adjustment

• Counter function: Counting range 0-4294967295

• Coupling method: DC and AC coupling methods

• Counting method: Manually

• Input signal voltage range: 2Vpp~20Vpp

• Pulse width measurement: 0.01us resolution, measure up to 20s

• Period measurement: 0.01us resolution, measure up to 20s

Sweep Function

• Sweep channel: CH1 or CH2

• Sweep type: Linear sweep, logarithmic sweep

• Sweep time: 0.1s~999.9s

• Setting range: Any setting between the maximum output frequency of the corresponding model of the starting point (0.01Hz) and the end point

• Sweep direction: Forward, reverse and round trip

Bursting Function

• Number of pulses: 1-1048575

• Burst mode: Manual burst, CH2 burst, external burst (AC), external burst (DC)
