Features:

3 In 1 Function: This product ingeniously integrates digital oscilloscope, transistor tester and signal generator functions into one machine.

Digital Oscilloscope Function: With the real-time sampling rate of 10MS/s and bandwidth of 500Khz. Support maximum measurement of 400V voltage signal. With complete trigger function (automatic, single, regular). Equipped with an efficient button AUTO, the measured waveform can be displayed without cumbersome adjustments.

Transistor Tester Function: Automatically identify and measure various transistors, including NPN and PNP triode, N-channel and P-channel metal oxide-semiconductor field effect transistor, JFET, diodes, double diodes, thyristors,as well as resistors, inductors, capacitors, field-effect transistor, etc. passive component. Automatic detection of pin definitions.

Signal Generator Function: 6 kinds of signal waveforms: sinewave, squarewave, pulsewave, trianglewave, rampwave, direct current. 1-100KHz adjustable output frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty ratio.

Tool Box Function: Automatically analyze specific Protocol infrared code. Other function modes: including circuit continuity test, 0-40V input voltage measurement, temperature and humidity sensors measurement, etc.

Compact Size: Lightweight and portable, also can be used as a portable tool for on-site debugging.

Reliable Quality: Adopts ABS antidrop housing, antislip concave design, high elasticity keys, simple interface, easy operation.

2.4inch Digital TFT Display: TFT color screen, high resolution display with LED backlight, with bright colors and high contrast, you can see the data clearly in bright light.

High Accuracy: Infrared decoding design, quick response, accurate capture of highly sensitive response signal, fast and accurate measurement with small error.

Rich and Powerful Features: One button for automatic adjustment, support for free switch, support intelligent fire preventions.

Long Endurance: Built-in 1500mAh high-capacity rechargeable polymer lithium battery, long lasting lifespan, Type-C interface, continuous power supplys without isolation transformer, safer to use.

Folding Bracket: Comes with invisible bracket, integrated folding, stable placement, free your hands, does not occupy too much space.

Wide Applications: Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc.

Specifications:

Name: 3in1 Digital Oscilloscope

Material: ABS

Type: standard configuration, high configuration (optional)

Display: 2.4 inches TFT color screen

Battery: Built-in 1500mah rechargeable lithium battery (included)

Charging interface: USB Type-C, +5V

Digital Oscilloscope: 10MSa/s

Real-time sample rate: 500Khz

Analog Bandwidth: 1ΜΩ

Input resistance: Alternating Current/Direct Current

Coupling method: 400V

Test voltage ranges: 10mV-10V

Vertical Sensitivity (x1): 1us-10s

Horizontal time base ranges:

Trigger mode: Auto / Normal / Single

Trigger type: Rising edges / Falling edges

Waveform Freeze: Yes

Automatic measurement: Yes

Transistor Tester:

Capacitor: 25pF~100mF

Resistor: 0.01Ω ~ 50ΜΩ

Inductor: 10uH~1000uH

Battery: 0.1~4.5V

Input voltage: 0~40V

DS18B20: 0-85℃

DHT1: 0-60°C/5-95%

Signal Generator:

Sinewave: 1-10KHz/0-3.3V/50%

Squarewave: 1-100KHz/3.3V/50%

Pulsewave: 1-100KHz/3.3V/0-100%

Trianglewave: 1-10KHz/0-3.3V/50%

Ramp: 1-10KHz/0-3.3V/0-100%

Direct current: 0-3.3V

Packing List (Advanced Version):

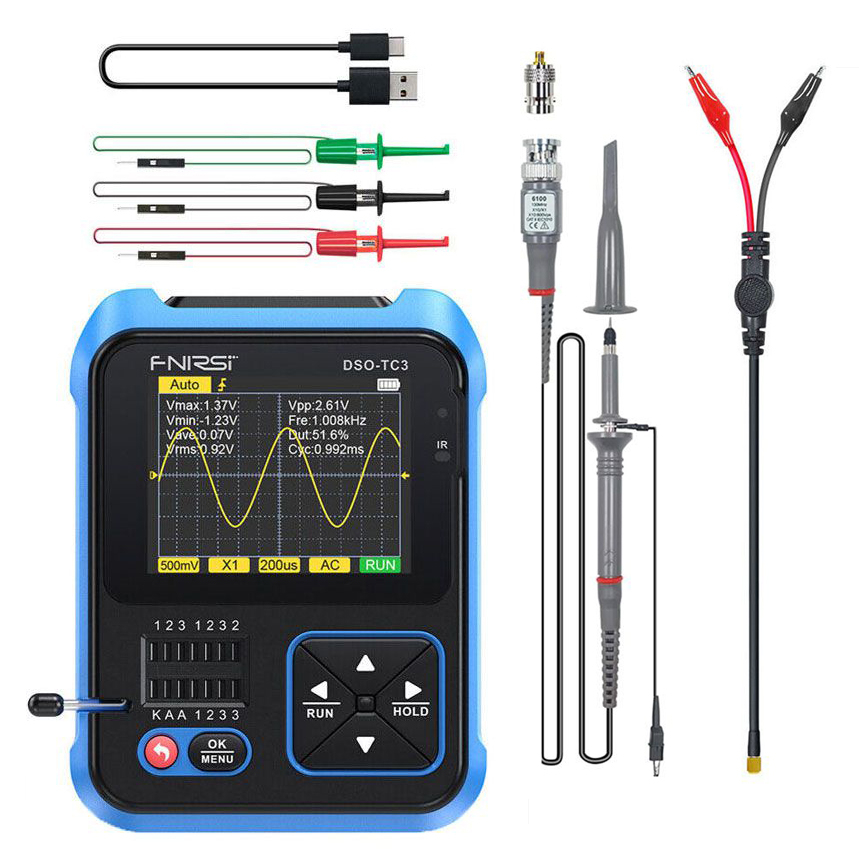

1 * 3in1 Digital Oscilloscope

1 * Adaptor

1 * Probe

1 * High Pressure Probe

3 * Test Hook

1 * Type-C Cable

1 * Manual
