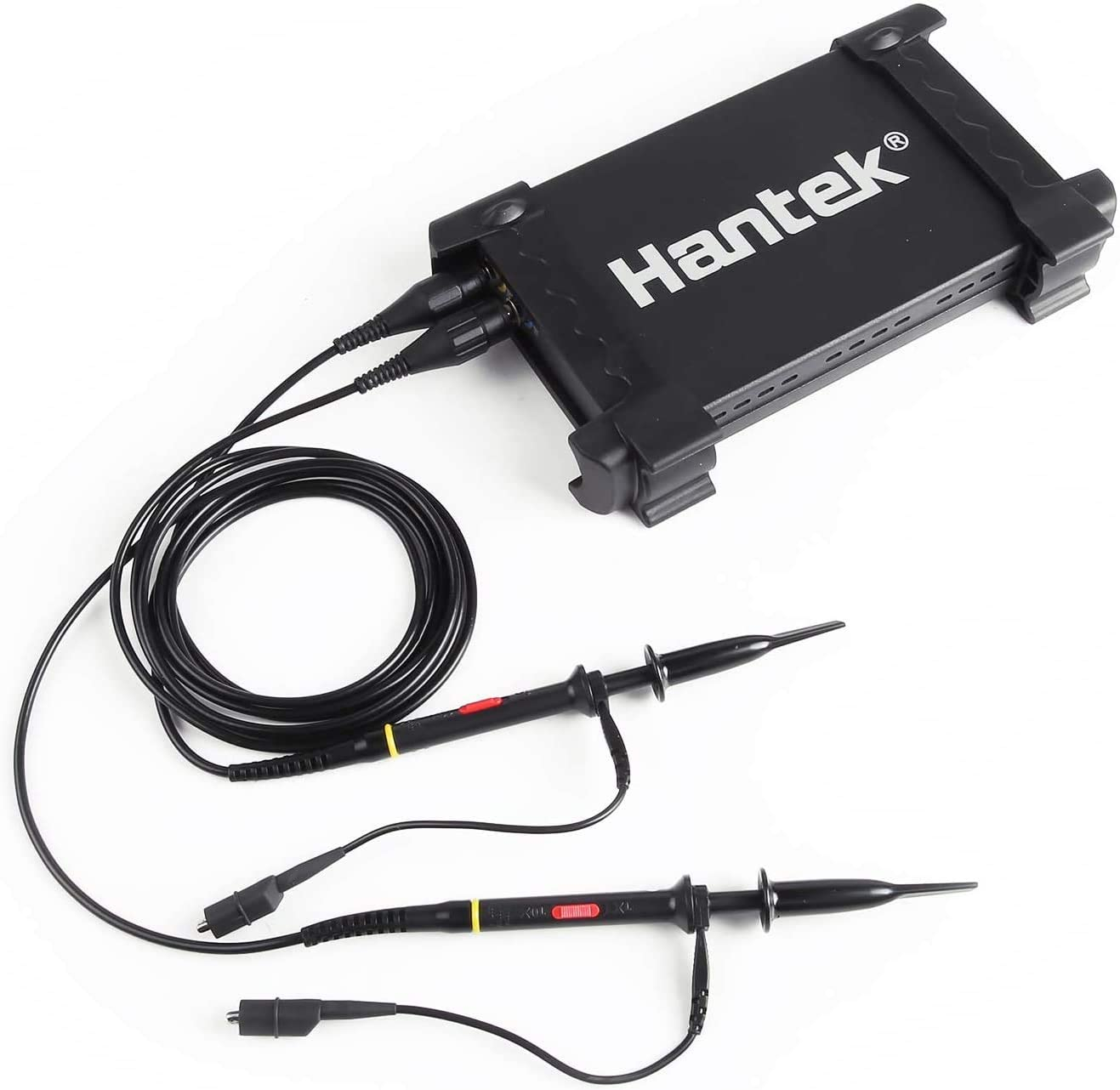

Hantek 6022BE Laptop PC USB Digital Storage Virtual Oscilloscope 2 Channels 20Mhz 48MSa/s Handheld Portable Oscilloscope

Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI interface, easyly inserts into USBXI housing to make up a combination instrument.

Specification：

Channel: 2 Channels

Bandwidth: 20MHz Max.

Sample Rate: 48MSa/s

Storage Depth: 1M

Vertical Resolution: 8 Bit

Impedance: 1MΩ 25pF

Coupling: DC

Voltage Range: 20mV-5V, 8Steps

Vertical Accuracy: ±3%
Timebase Range: 1ns-5000s, 39 Steps

Vertical Adjustable: Yes

Input Protection: Diode Clamping

X-Y: Yes

Horizontal Mode: Auto, Normal and Single Trigger Slope: +/-

Trigger Level Adjustable: Yes

Trigger Source: CH1, CH2

Pre Trigger: 0-100%

Sampling Selection: Yes

Waveform Display: Port/Line, Intensity Network: Open/Close

Cursor Measurement: Yes

Math: FFT, Invert, Addition, Subtraction, Multiplication, Division

Cursor Display: Frequency, Voltage
