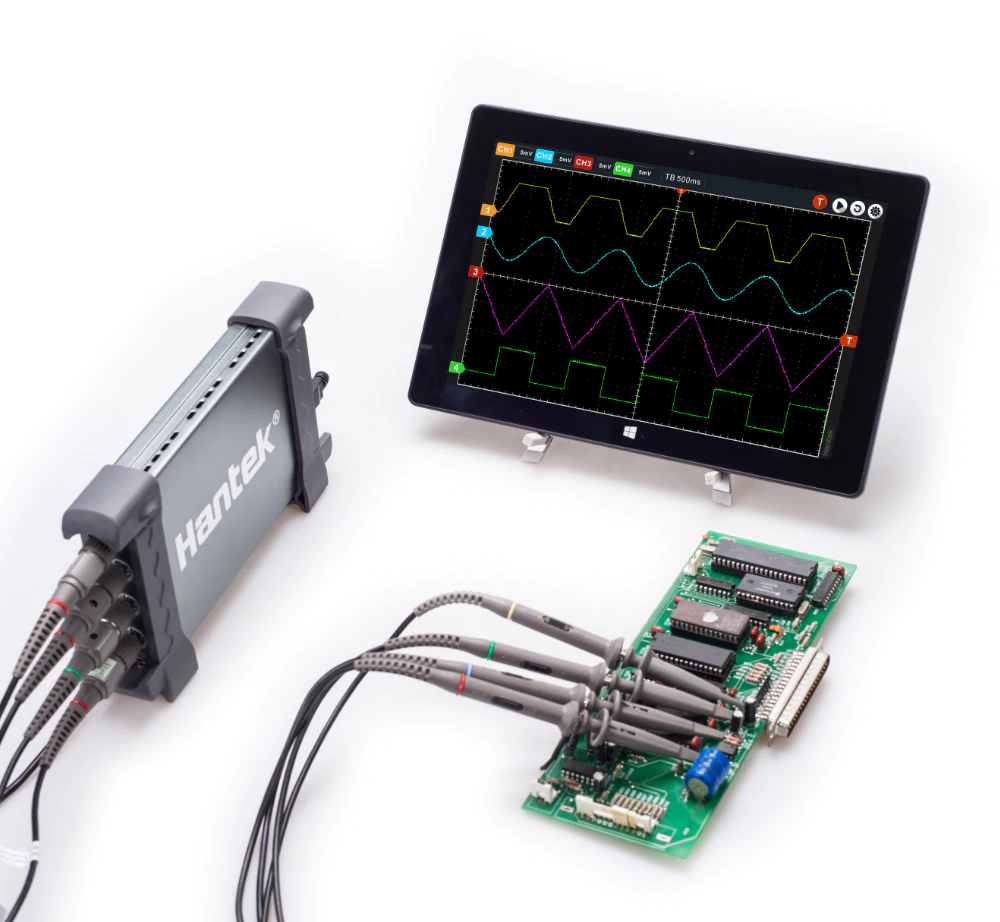

Hantek 6204BC 4Ch 200 MHz USB Oscilloscope

200MHz bandwidth

1GSa/s real-time sampling rate

4 independent analog channels

64kpts record length

Waveform data file:EXCEL,BMP,JPG

USBXI standard interface

Software support:Windows10,Windows 8,Windows 7

Labview\VB\VC\QT developing examples

Bandwidth 200MHz

Channel 4 CH

Real-time Sampling Rate 1GSa/s

Memory Depth 64K

Time Base Precision ±50ppm

Time Base Range 2ns/div-1000s/div (1-2-4 sequences)

Input Impedance 1MΩ 25pF

Input Sensitivity 2mV/div~10V/div

Vertical Resolution 8Bit

Vertical Displacement Range 2mV10V/div@x1 probe; 20mV100V/div@x10 probe;

200mV1000V/div@x100 probe;2V10000V/div@x1000 probe

DC Gain Accuracy ±3%

Bandwidth 20MHz

Trigger Mode Edge, Pulse, Video, Alternative

Trigger Source CH1, CH2, CH3,CH4

Waveform Signal Process +,-,x,÷,FFT, Invert

Cursors Measurement Cross, Trace, Horizontal, Vertical

Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms,

Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume 175mm 105mm 25mm

Weight 0.9kg

Accessory 2 passive probes, 2 aligator clip lines

Hantek6204BC Hantek PC Based USB Digital Storage Oscilloscope 200MHz  Bandwidth

Feature

·     The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

·     Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

·     USB2.0 Interface, plug and play device.

·     Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

·     Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.

·     Software support: Windows10, Windows 8, Windows 7

·     The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

·     More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

·     Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

·     FFT spectrum analyzer

·     One computer could connect with multiple oscilloscopes, expand the channel number easily.

·     USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.

·     Provide secondary development library DLL; Provide Labview\VB\VC developing examples.
