Product description

1. MULTIPLE FUNCTIONS This oscillograph has a real-time sampling rate of 2.5 MS/s, a bandwidth of 200 kHz and a full trigger function (single, normal, automatic).
2. MEASUREMENT SIGNAL: Whether for periodic analog signals or non-periodic digital signals, it can be used freely and measure voltage signals up to ±400V.
3. WAVE SHAPE DISPLAY: Supports one button AUTO, can display the measuring waveform without complicated adjustment with a 1kHz calibration rectangular wave.
4. POWER SUPPLY This handheld oscillograph is equipped with a 1000mAh lithium battery and supports charging with 5V and 1A via USB to ensure a long service life.
5. Clear display: the digital oscillograph has a compact size with a 2.8 inch screen, which is clear and intuitive and significantly improves measurement efficiency.

Specification:

• Item Type: Oscillograph

• Model: DSO152

• Sampling Rate: 2.5 MS/s

• Pairing Method: AC DC

• Bandwidth: 200K

• Display: 2.8 inches, PP1: 320 x 240

• Vertical Sensitivity: 10mV/Div-20V/Div (in increments of 1-2-5)

• Time Base Range: 10uS/Div-50s/Div (in increments of 1-2-5)

• USB Charging: 5V 1A

• Voltage Range:

  • x1: ±40 V (Vpp: 80 V)

• Power Supply: 1000mAh lithium battery (built-in battery)

• Calibration Rectangular Wave:

  • Frequency: 1K

  • Working Cycle: 50%

• Trigger Method: Auto, Normal, Single
  Application:
  Can be used after starting.

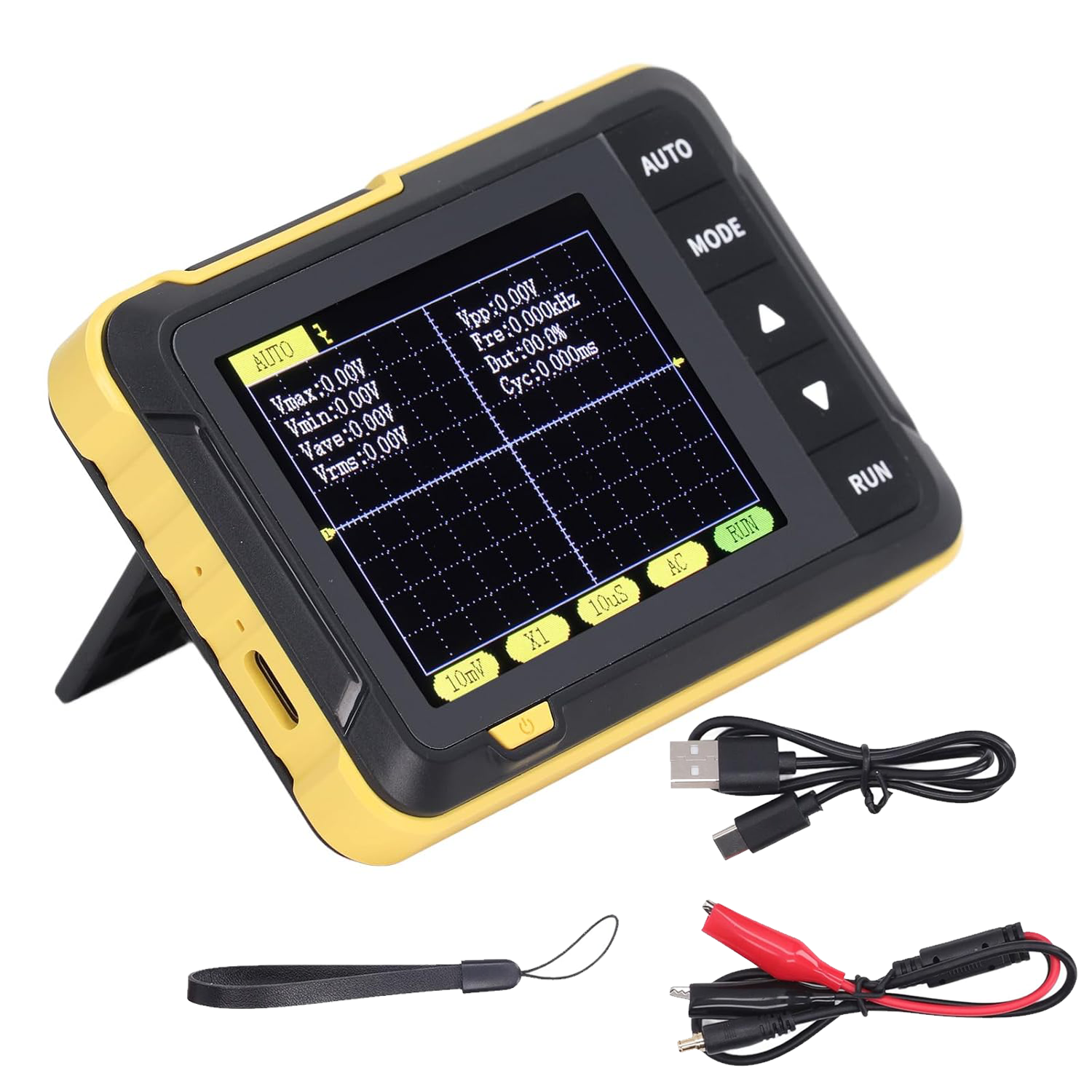

Packing list:

1 x oscillograph.
2 x user manual (English language not guaranteed).
1 x hanging rope.
1 x alligator clip.
1 x USB cable.
