Overview

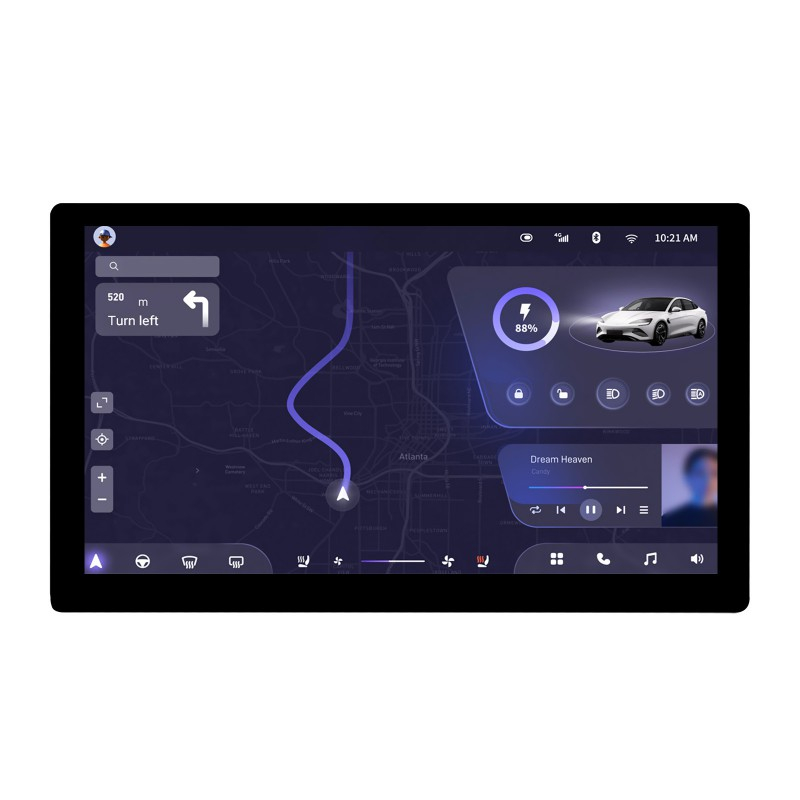

The 70H-1024600 series display, designed by Waveshare Team, is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display, users can do the second development by themselves easily.
For simplifying the display, we integrate the power supply, display, touch, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects.

Feature

• 7-inch IPS/QLED screen, 1024 x 600 hardware resolution.

• Capacitive touch, support five-point touch (this function is only for the touch version).

• COF thin and light structure, providing 40PIN interface one-line communication, integrated development is more convenient.

• High compatibility, when used with development accessories, it supports main control boards such as Raspberry Pi, PC, and Jetson nano.

• Support backlight control, more power saving.

Specification

Item Description Unit

Product Model 70H-1024600 Series

Size 7.0 Inch

Viewing Angle 170 Deg

Resolution 1024 (RGB) × 600 Pixels

Touch Screen Size 173 (H) × 103 (V) × 4.2 (D) mm

Display Size 164 (H) × 97 (V) × 3.5 (D) mm

Display Area 154.2144 (W) × 85.92 (H) mm

Pixel Pitch 0.1506 (H) x 0.1432 (V) mm

IPS Version Color Gamut 45%NTSC

QLED Version Color Gamut 78%NTSC

Brightness 350 cd/m²

Backlight Adjustment Method PWM software dimming

Contrast 800:1

Color Depth 16.7M

Refresh Rate 60 Hz

User Interface 40PIN 0.5mm FPC

Weight Note1 g

Power Consumption Note2 Watt
