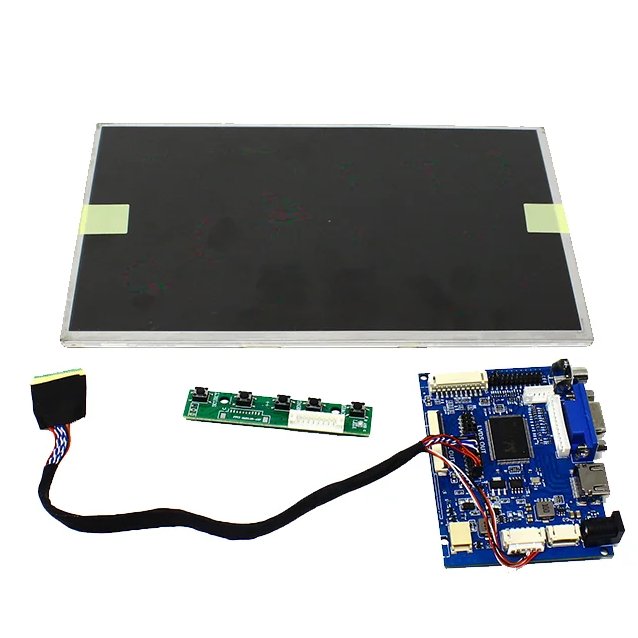

10.1-inch IPS LCD Screen is a high-definition display kit designed for Raspberry Pi and other compatible systems. With a resolution of 1280x800, this IPS display ensures clear and sharp visuals, perfect for various multimedia applications. The kit includes an HDMI, VGA, and 2AV input interface, making it versatile for multiple uses. This screen also supports OSD language selection, including languages like English, Spanish, Chinese, French, and more.

The driver board is designed to be installed carefully, ensuring that no metal or conductive material touches the circuit board to prevent damage. The screen also supports automatic AV switching, making it ideal for vehicle systems and other visual applications.

Key Features:

1. Screen Size: 10.1 inches IPS display with a 1280×800 resolution.

2. Multiple Inputs: Supports HDMI 1.1, VGA, and 2AV video inputs.

3. Versatile Compatibility: Works with Raspberry Pi, mobile DVDs, vehicle systems, digital photo frames, and other audio-visual systems.

4. Automatic AV Switching: Automatically switches between input sources (e.g., from AV1 to AV2) when connected to a reversing camera or other devices.

5. OSD Language Support: Offers a wide range of OSD languages including English, Spanish, French, German, Italian, and others.

6. Plug and Play: Easy to use and compatible with Raspberry Pi OS, plug and play functionality.

7. Backlight Control: Supports backlight control, which helps in power saving.

Specifications:

• Resolution: 1280×800

• Contrast Ratio: 600:1

• Display Color: 16.7M (6bits + Hi-FRC)

• Operating Voltage: 12V DC

• Operating Current: 2A max

• Brightness: 350 cd/m²

• Panel Type: TFT

• Rated Power: 6-7W

• Signal Input: 2 AV + VGA

• VGA Input: 1280×800

• Operating Temperature: -20°C to 80°C

• Display Size: 228.6mm x 149.2mm x 2.39mm

• Visual Area: 216.96mm x 135.60mm

• Weight: 0.3 kg

• Shipping Dimensions: 26 × 18 × 1 cm

Applications:

• Mobile DVD Players

• Digital Photo Frames

• Vehicle Systems (e.g., reverse camera systems)

• Multimedia Applications

• Other Audio-Visual Systems

This kit is an excellent solution for a variety of projects requiring a high-resolution display, from Raspberry Pi applications to automotive and multimedia systems. It is not a touchscreen but provides vibrant visuals and multiple input options for different devices.
