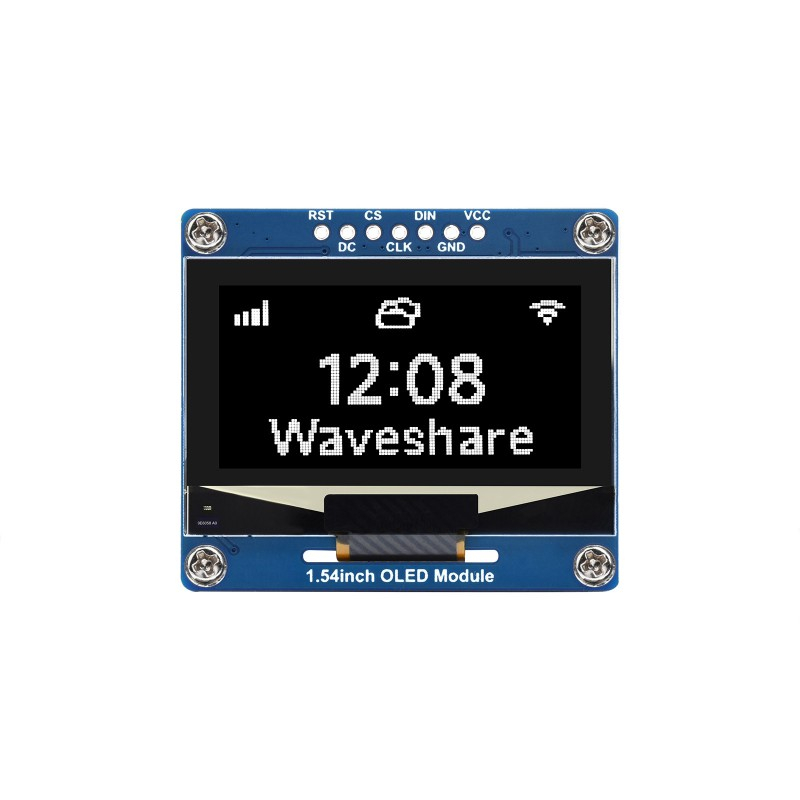

1.54inch OLED Display Module

Embedded SSD1309 driver chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano, etc.

Features at a glance

• Onboard voltage translator, compatible with 3.3V / 5V MCUs

• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate

• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)

Specifications

Operating voltage 3.3V / 5V

DISPLAY PANEL OLED

Resolution 128 × 64 pixels

PIXEL SIZE 0.25 × 0.25 mm

Communication Interface 4-wire SPI / I2C

Driver SSD1309

Display size 35.05 × 17.52mm

Module size 43.00 × 37.50mm

Control Interface

VCCPower (3.3V / 5V input)GNDGroundDINData inputCLKClock inputCSChip selection, low activeDCData/Command selection (high for data, low for command)RSTReset, low active

Hardware connection

connecting with Raspberry Pi via SPI interface

connecting with Arduino board via SPI interface
