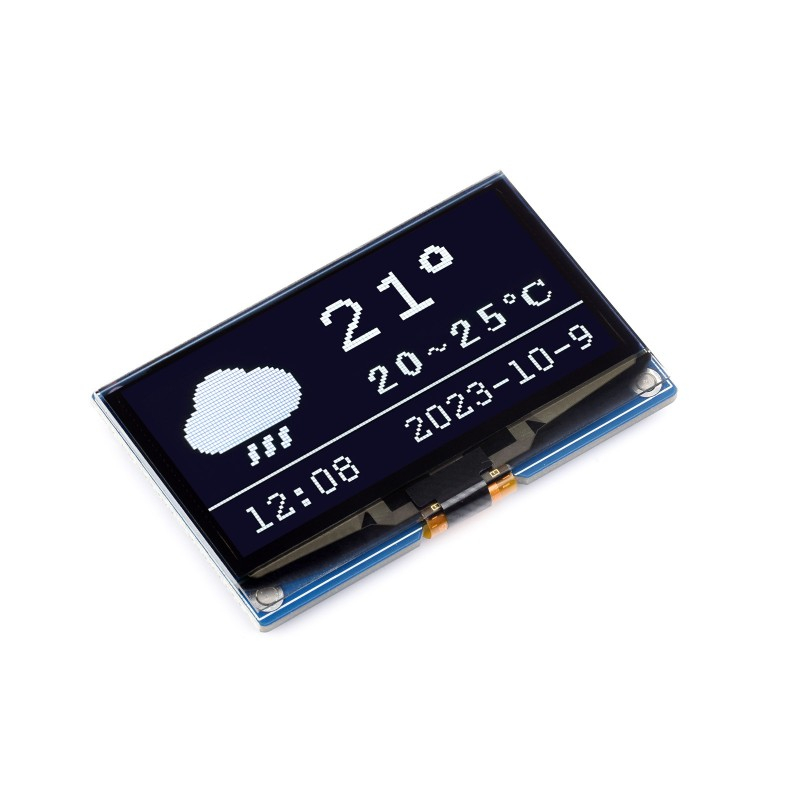

2.42inch OLED Display Module

Embedded SSD1309 driver chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano, etc.

Features at a glance

• Ultra-narrow bezel, conpact size, with onboard voltage translator

• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate

• Comes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32/ESP32/Jetson Nano)

Specifications

Operating voltage 3.3V / 5V

DISPLAY PANEL OLED

Resolution 128 × 64 pixels

PIXEL SIZE 0.4 × 0.4mm

Communication Interface 4-wire SPI (default) / I2C

Driver SSD1309

Display size 55.01 × 27.49mm

Module size 61.50 × 39.50mm

Display color 2.42inch OLED Module: white

Control Interface

Hardware connection

connecting with Raspberry Pi via SPI interface

connecting with Arduino board via SPI interface
