Features and Specifications:

1. Switching Capacity:

   • 1mA to 0.1A/28 VDC (resistive load).

2. Contact Resistance:

   • 200mΩ max.

3. Insulation Resistance:

   • 10MΩ min. (at 250 VDC) between non-connected terminals.

   • 100MΩ min. (at 250 VDC) between each terminal and non-current carrying part.

4. Dielectric Strength:

   • 250 VAC, 50/60Hz for 1 minute (between non-connected terminals).

   • 1,000 VAC, 50/60Hz for 1 minute (between each terminal and non-current carrying part).

5. Operating Force:

   • 450g max.

6. Vibration Resistance:

   • 10 to 55Hz, 1.5mm double amplitude.

7. Shock Resistance:

   • 490m/s² (approx. 50g).

8. Ambient Temperature:

   • Operating: -10°C to +65°C.

   • Storage: -20°C to +80°C.

9. Humidity:

   • 45% to 85% RH max.

10. Service Life:

• Mechanically: 30,000 operations minimum.

• Electrically: 20,000 operations minimum.

11. Weight:

• Approx. 1.5g per unit.

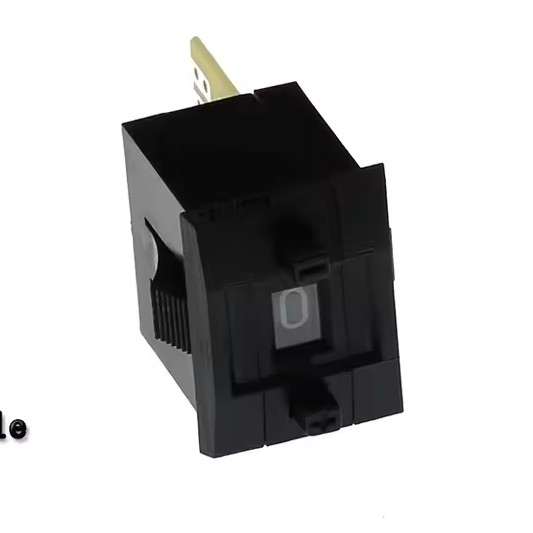

Dimensions and Design:

• Compact design with detailed measurements for panel cutout and mounting.

• Available configurations: single unit up to 10 units.

Coding System (8421C):

• Operation Logic:

  • When a number is dialed (0-9), specific connections occur between the C terminal (common) and numbered terminals (1, 2, 4, 8).

  • Example:

    • For 1, C and 1 are connected.

    • For 3, C and terminals 1 + 2 are connected.

    • For 9, C and terminals 1 + 8 are connected.

SPDT Repeating Function:

• 10-position switch alternating between plus (+) and minus (-) connections.

Applications:
Ideal for digital coding, industrial control, and electronic circuits requiring reliable toggle switches with multiple contacts and BCD output.
