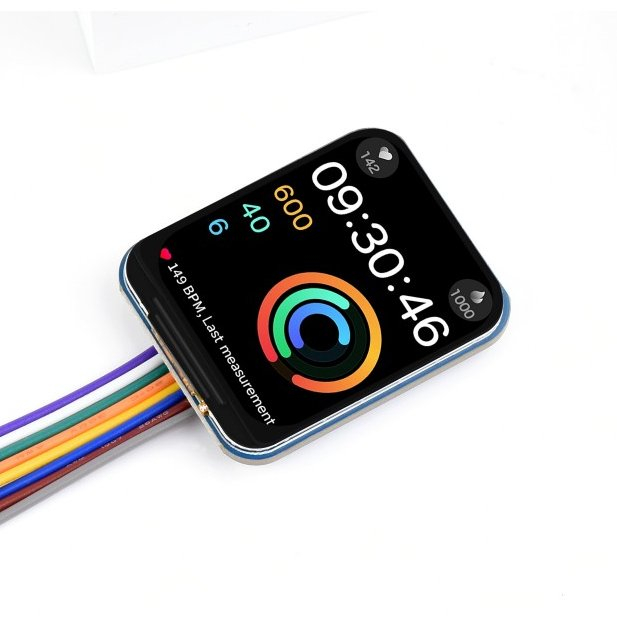

The 1.69-inch LCD Display Module boasts a remarkable 240x280 resolution and a vibrant spectrum of 262K colors. With its IPS technology, the display ensures clear and colorful visuals. It features an SPI interface that conserves IO pins and seamlessly connects with popular controller boards such as Raspberry Pi, Arduino, and STM32.

Feature

• Outstanding Display Effect: 240×280 resolution, 262K colors, clear and colorful displaying effect

• Versatile Interfaces: SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

• Abundant Online Course: Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Description

The 1.69-inch LCD Display Module, features a captivating 240x280 resolution and a vivid palette of 262K colors, opening new avenues across various application domains. Employing IPS technology, it guarantees a clear and dynamically colorful visual experience. Its versatile SPI interface not only minimizes IO pin requirements but also seamlessly integrates with popular controller boards like Raspberry Pi, Arduino, and STM32.

This display module holds promising applications across a spectrum of projects. Its high resolution and vibrant display make it an excellent fit for crafting small, portable devices such as smartwatches, digital photo frames, or handheld gaming consoles. Leveraging its multi-functional SPI interface, it can be seamlessly integrated into projects involving data visualization, real-time monitoring, or interactive interfaces. Furthermore, the abundance of online course resources provides developers with platform-specific examples for Raspberry Pi, Arduino, and STM32, fostering practical implementation of innovative ideas.

Whether you're an individual enthusiast or a seasoned developer, this display module unlocks opportunities for creativity and innovation. Whether enhancing personal projects or seeking premium display solutions for commercial product development, the 1.69-inch LCD Display Module stands as an intriguing choice.

Application

• Smartwatches

• Digital Photo Frames

• Handheld Gaming Consoles

Specification

OPERATING VOLTAGE 3.3V / 5V

COMMUNICATION INTERFACE 4-wire SPI

DISPLAY PANEL IPS

DRIVER ST7789V2

RESOLUTION 240 × 280 pixels

DISPLAY SIZE 27.97 × 32.63mm

PIXEL SIZE 0.11655 × 0.11655mm

MODULE SIZE 31.50 × 39.00mm

Hardware Overview

VCC Power (3.3V / 5V input)

GND Ground

DIN SPI data input

CLK SPI clock input

CS Chip selection, low active

DC Data/Command selection (high for data, low for command)

RST Reset, low active

BL Backlight

Part List

1.69inch LCD Module ×1

GH1.25 20cm 8Pin cable ×1
