" TFT LCD Module +HDMI& VGA&2AV A/D DVI  Board

LCD Monitor control board supports HDMI&VGA, 2AV input sources

Power Supply 5v
System PAL/NTSC
PRESET MODE FOR PC-RGB INPUTS:640480, 800600, 1024600,1024768,
1280*1024

OSD Language:Simple-Chinese,Original Chinese,Korean,Japanese,English,
French,German,Spanish,Italian,Russian
OSD Control - Menu, Down, Up, Source,Power 5Keys

Input

HDMI1.1

VGA--PC-RGB (15 pin D-SUB )

 AV1

AV2 Input (Support Reverse Priority)(for rear view camera)
Chromatic System PAL/NTSC Auto Switch

Dimension:90mm70mm10

Applications:
Mobile NB
Car system
Digital Photo frame
Multimedia applications and Others AV system

Display Size: 7 inch
Outline Dimension: 165.0 x 104.0 x 5.1 (Typ.) mm
Display Area:153.6(H) x 86.64(V)
Pixel pitch:0.192(H) x 0.1805(V)
Number of pixels: 800RGB(H)*480(V)
kneading board type:TFT
Display colors:262K
Contrast gradient:500:1
Brightness:200cd/m2
Interface type: Digital
Pin No.:60 pin FPC
Backlight:LED
Response Time:5-28ms
Weight: 130g (Typ.)

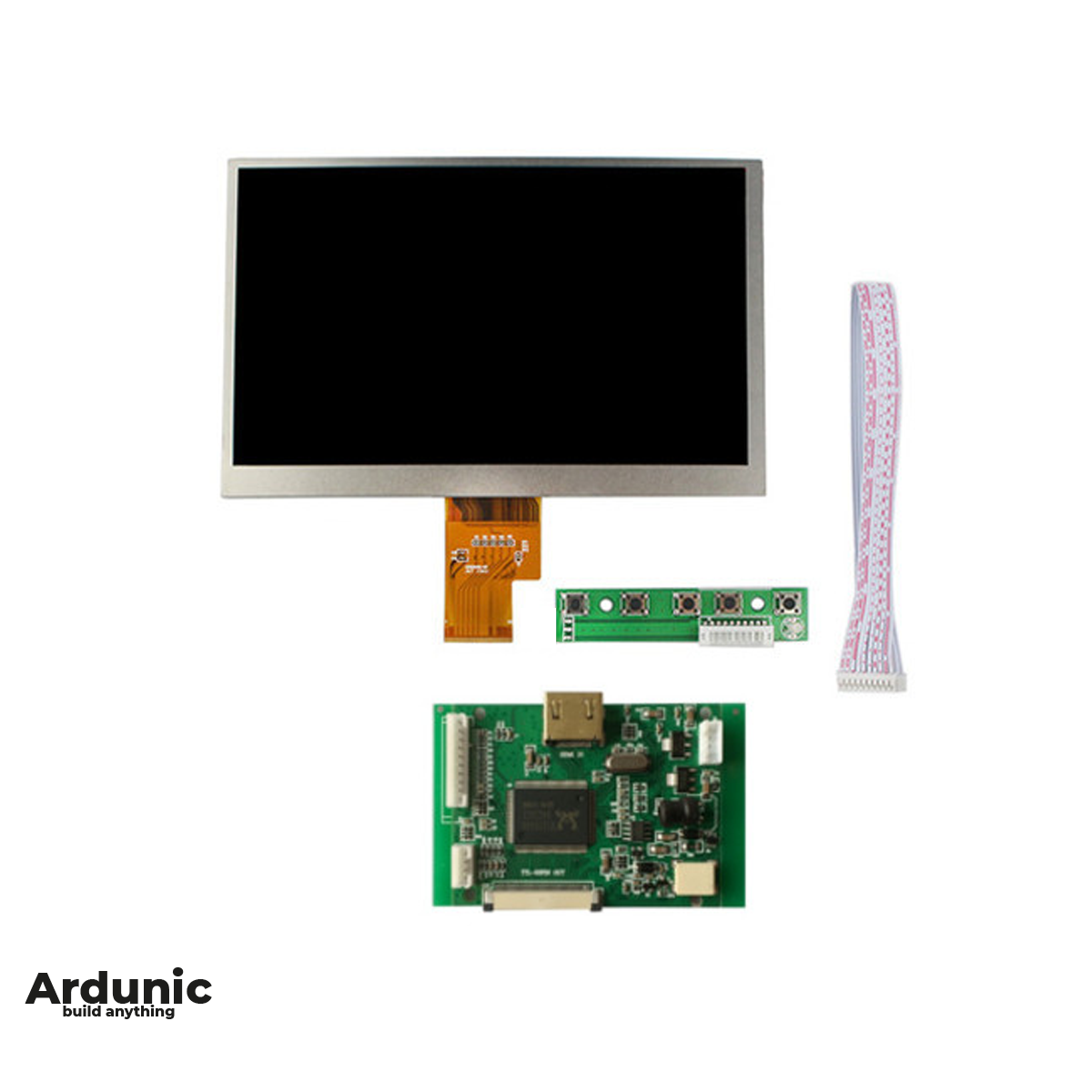

Packing list:

 1 x 7" TFT LCD Module(800*480 Resolution
 1 x A/D Board with VGA & 2AV  function
