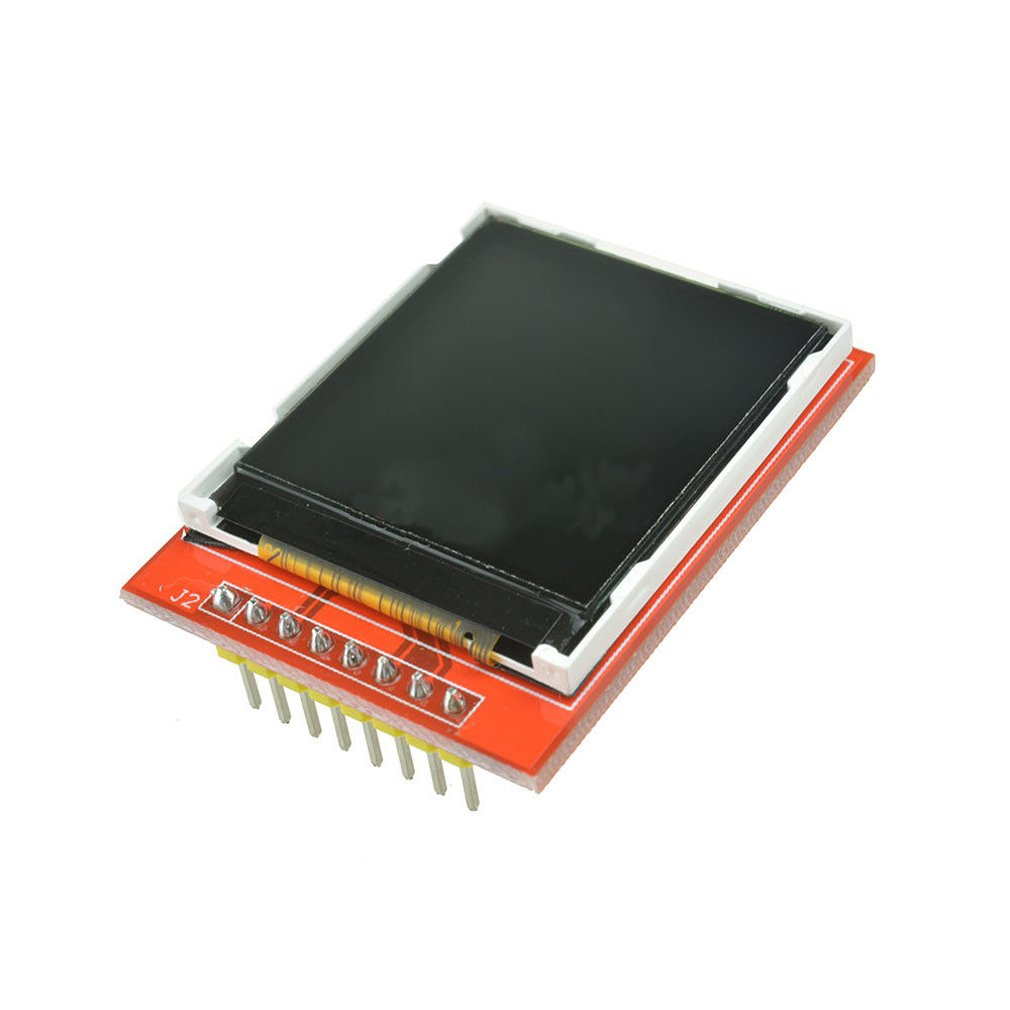

1.44-inch color sn,support 65K color display,display rich colors
128X128 resolution, clear display
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program,process standards, long-term stable work

• Type:TFT

• Driver IC: ST7735S

• Module Interface: 4-wire SPI interface

• Active Area (AA area): 26.2x27.2(mm)

• Module PCB Size: 29.7x43.36(mm)

• Operating Temperature: -20℃~60℃

• Storage Temperature: -30℃~70℃

• VCC power voltage: 3.3V~5V

• Logic IO port voltage: 3.3V(TTL)

• Power Consumption: TBD

• Material:Metal +pc

• colour:red
