Features :

1. It shows the color depth of 262K/65K.

2. Need at least 4 IOs from your MCU

3. The display has a wide viewing angle.

4. Big display with good resolution.

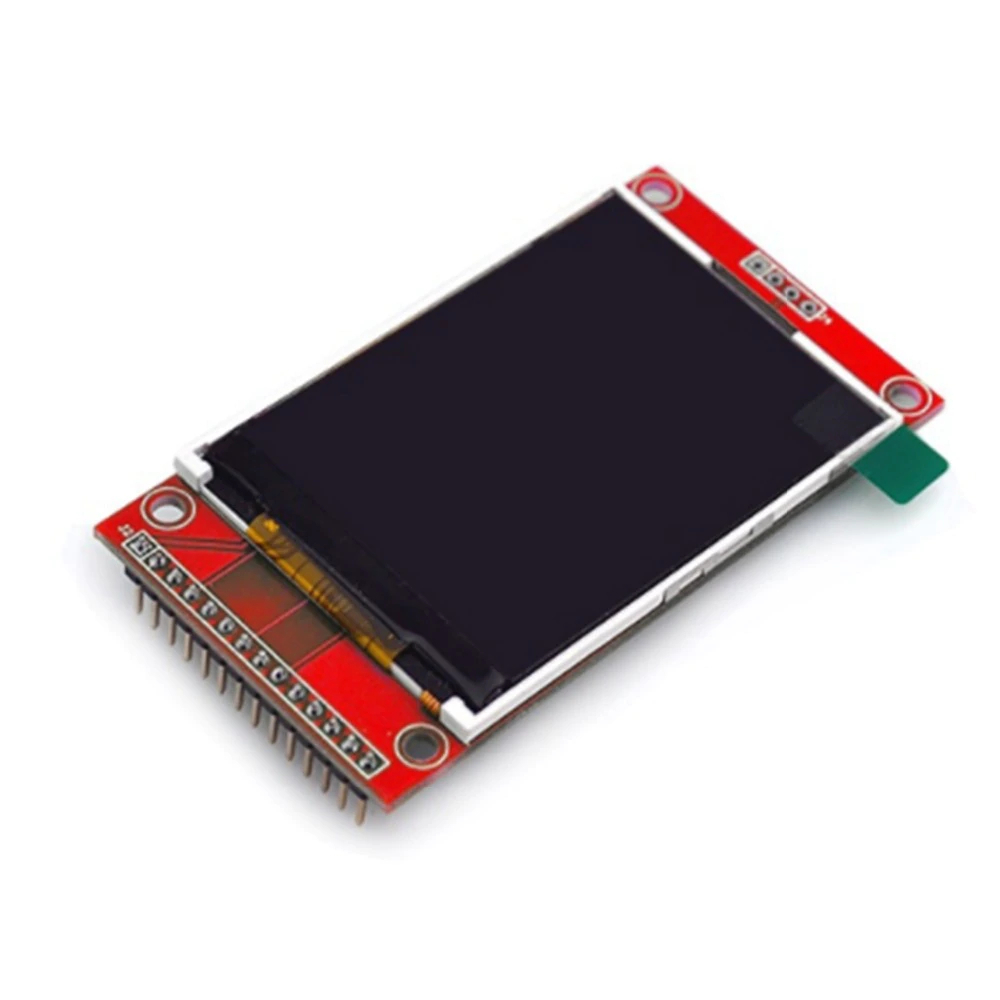

5. It is a 2.4" SPI TFT LCD Screen Module, 10pins interface. Not just a LCD break but include SD card (2GB),


6. The LCD drive ic is ILI9341. It's a 240 * 320 (resolution), 2.4 inch TFT LCD screen.The LCD has a wide viewing angle, the contrast is also very suitable.


7. The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.


8. SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.

Parameter

• SDO: Serial clock output


• LED: 3.3V IO and Power Supply pin


• SCL: Serial clock input


• SDA / SDI: Serial data input


• DC: Data / Command selection


• RST: Reset, Low level active


• CS: Chip Selection, Low level active


• GND: Ground


• VDD33: 3.3V Power Supply pin


• UTFT Support
