Description

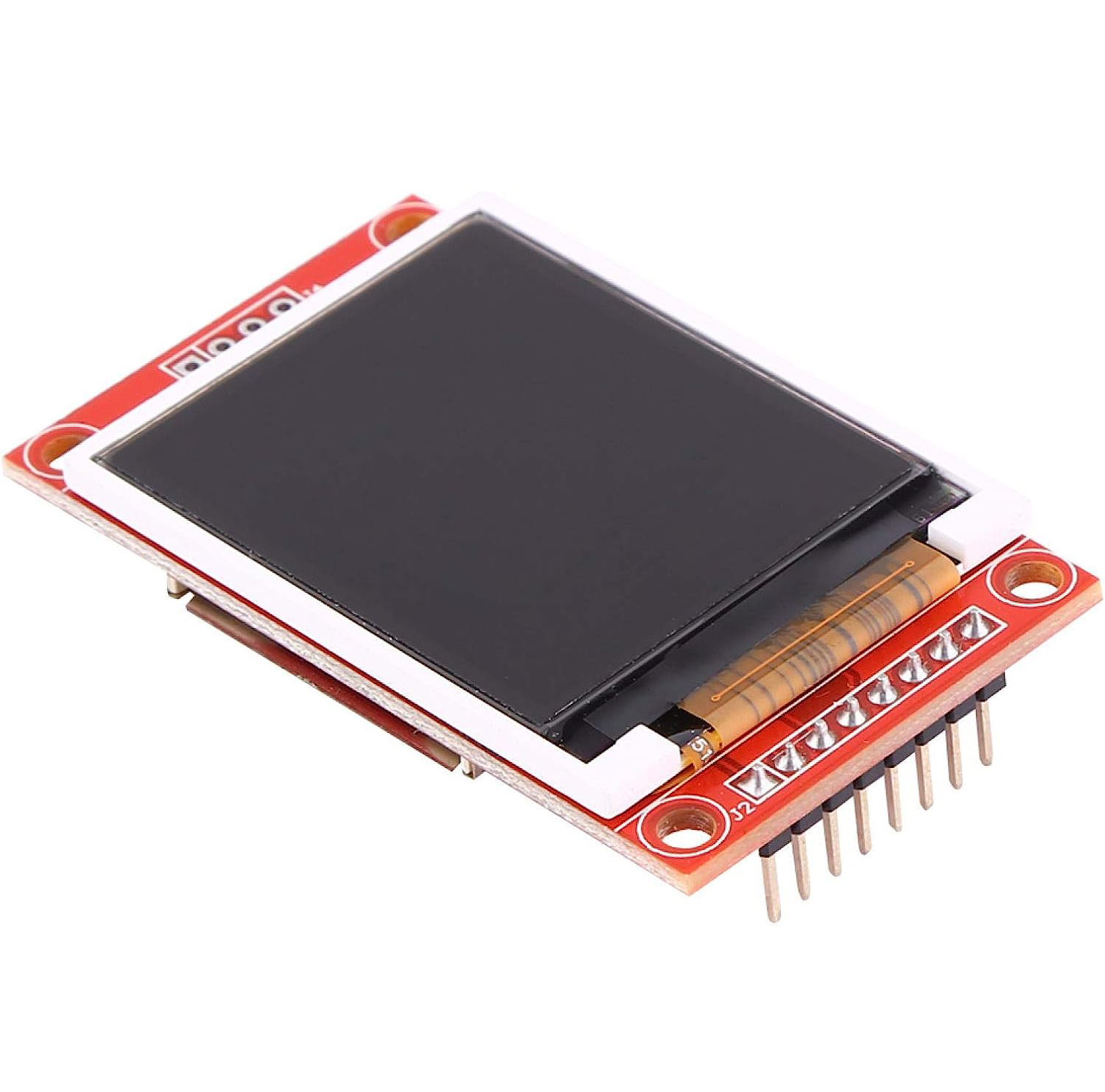

• 1.8-inch color screen,support 65K color display,display rich colors

• 128X160 resolution, clear display

• Using the SPI serial bus, it only takes a few IOs to illuminate the display

• With SD card slot for convenient function expansion

• Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms

• Military-grade process standards, long-term stable work

• Provide underlying driver technical support

Parameters

Display Color 16BIT RGB 65K color

SKU MAR1801

Screen Size 1.8(inch)

Type TFT

Driver IC ST7735S

Resolution 128*160 (Pixel)

Module Interface 4-wire SPI interface

Backlight 2 White Led

Active Area 28.03×35.04 (mm)

Module PCB Size 38.30×62.48 (mm)

Operating Temperature -20℃~60℃

Storage Temperature -30℃~70℃

Operating Voltage 5V/3.3V

Power Consumption TBD

Rough Weight(Package containing) 18 (g)
