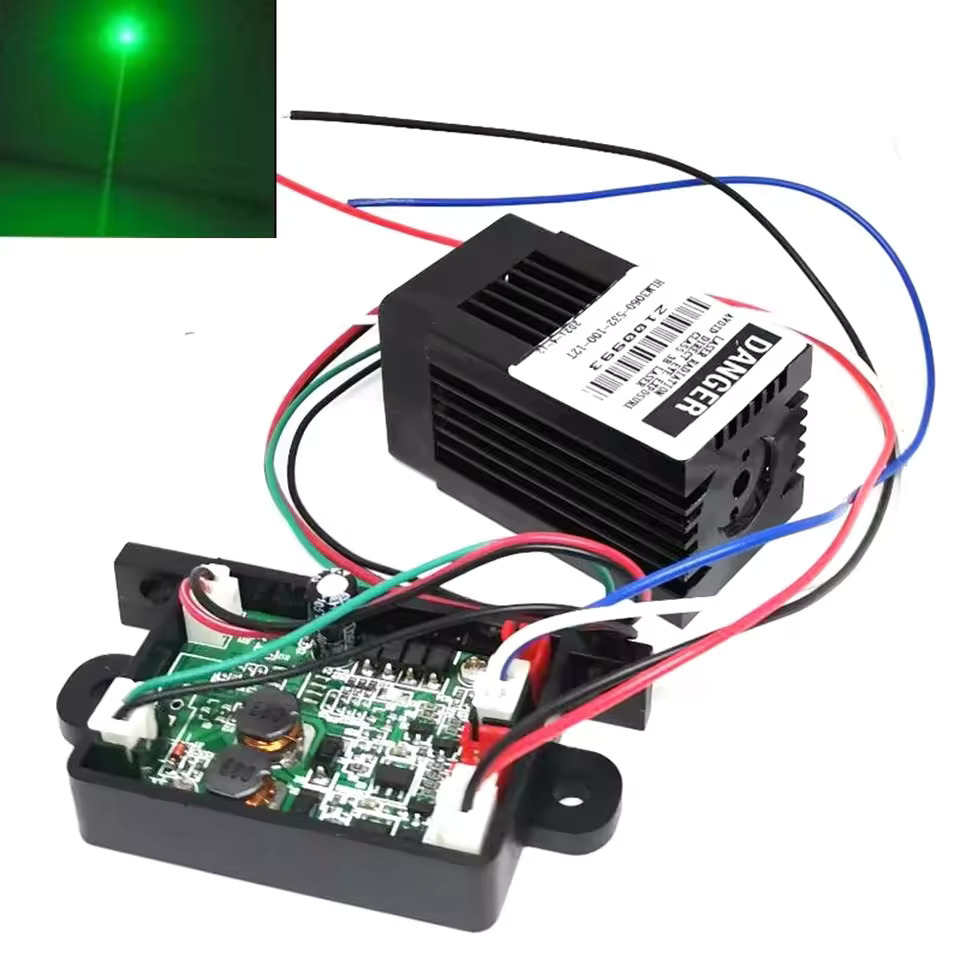

Industrial 532nm 80mw-100mw Green Dot Laser Diode Module 12V With TTL 0-20KHZ

Parameters:

Output Wavelength:532nm
Output power:80mw-100mw
Spot ellipticity:> 0.9
Laser Shape:Dot
Focusable:N/A
Idemitsu height;15mm
Divergence angle:<1.2mrad
Operating temperature: 0 ~ 40 ℃
Modulation: TTL level (0 ~ 20K)
Input voltage: DC / AC 12V
Laser Size: 55 (L) X30 (W) X30 (H)

Features:

1. Connect the power plug after turning on the switch.
It is applied for 10 minutes after power into a stable state.
Switching power supply interval should be greater than five seconds, or easily damage to the laser.
Power Plate should be placed on the insulator
2When you use the power supply board should be placed on an insulator or overhead,
Otherwise, bad baked laser power.
Avoid laser internal wiring circuit.
3. To make the laser heat well, please laser fixed on a flat metal plate.
4,Please note that the use of the dust, the dust can not be used in place too, if the laser is not a long time in the light hole stickers affixed dust.
