3S 60A INTRODUCTION

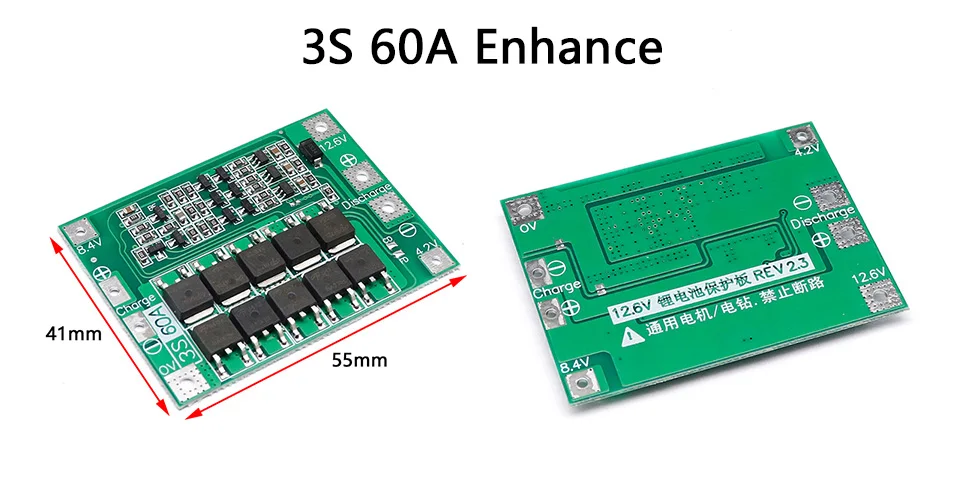

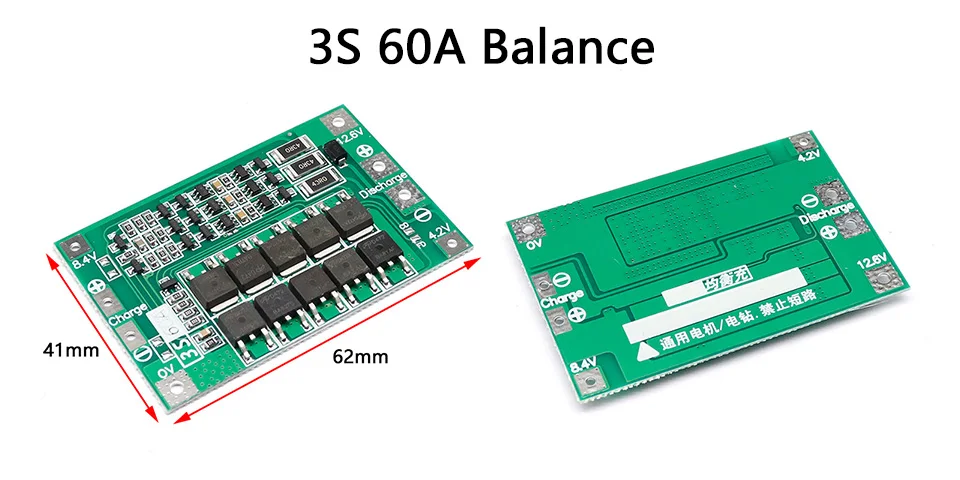

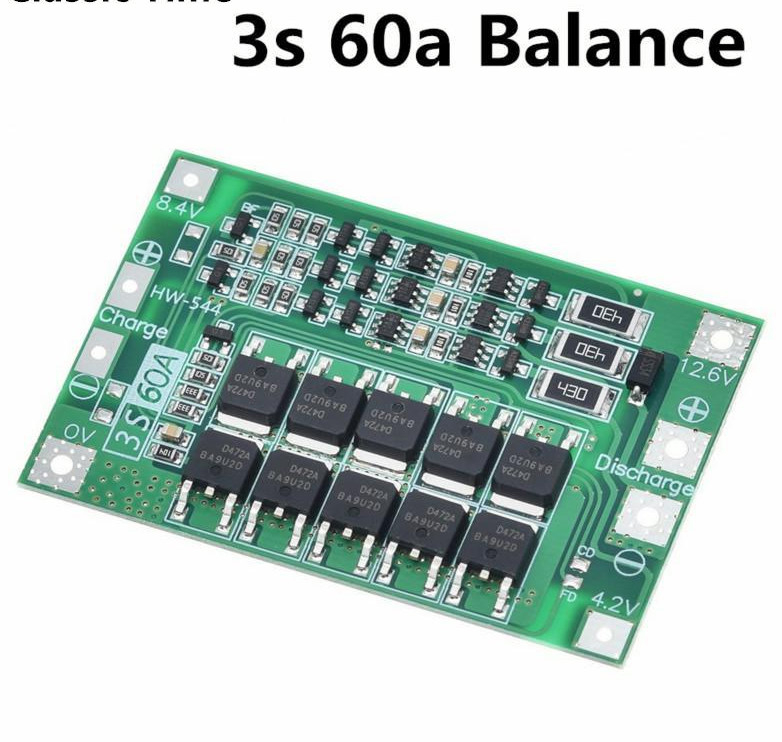

Product name: 3S lithium battery protection board 60A enhanced version
1、 Product description:

This product is used to charge/discharge three groups of lithium batteries in series, and each group can connect multiple lithium batteries in parallel. It can Withstand continuous charging current 20A, continuous discharge current 40A, instantaneous current below 80A. used During the process, the heat dissipation conditions should be good. If the heat dissipationcon ditions are not good, please reduce the current usage and do not let the board The has a noticeably hot feeling. During charging and discharging, it has overcharge protection, overdischarge protection, and overcurrent Protection, short circuit protection. This product can be used in electric drills, sprayers, LED lights, low power reverse Charge and discharge batteries of transformers and other products.

2、Product parameters
Product model : HW-552
Size : 41 90 1mm
Charging voltage : 12.6V-13V
Maximum working current : 60A ( heat dissipation conditions are very good )
Continuous charging current ( upper limit ) : 20A
Continuous discharge current ( upper limit ) : 40
Overcurrent protection : 125A
Overcharge detection : 12.8V ( for 3 groups of batteries )
Overcharge release : 12.3V ( for 3 groups of batteriese Overdischarge detection : 2.4V ( for 1 group of batteries )
Overdischarge release : 3.0V ( for 1 group of batteries )
Short circuit protection : Yese
Working temperature : -40℃ ~ +85℃
Storage conditions : -40℃ ~ +125℃

3、Instructions for use ( THREE USAGE SCENARIOS )

A.CHARGING ( OVERCHARGE PROTECTION )

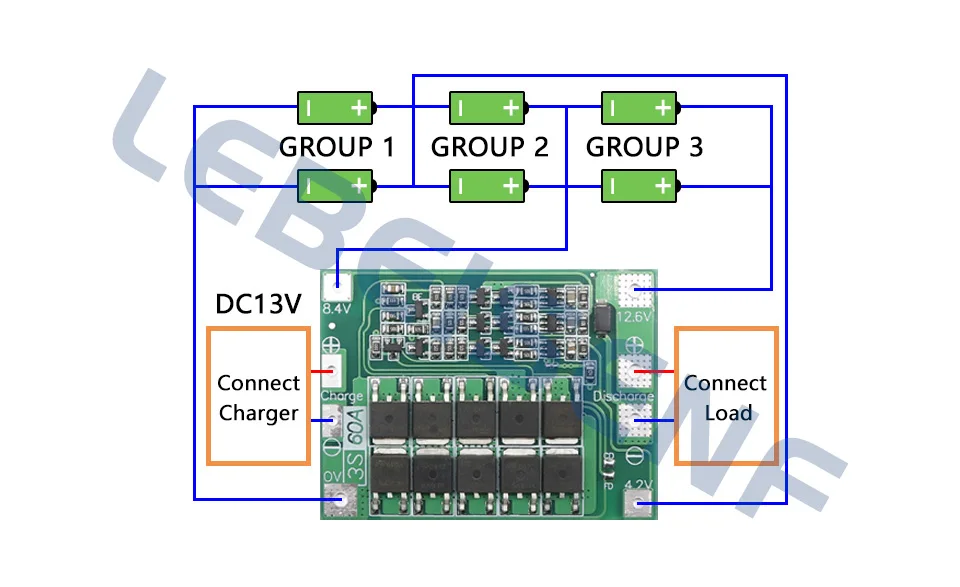

( 1 ) First , the wiring must be strictly in accordance with the above figure . Use good wires and good contact Good , because even a small resistance will cause a large current to flow. Pressure drop and generate a lot of heat , which affects the performance of the board.

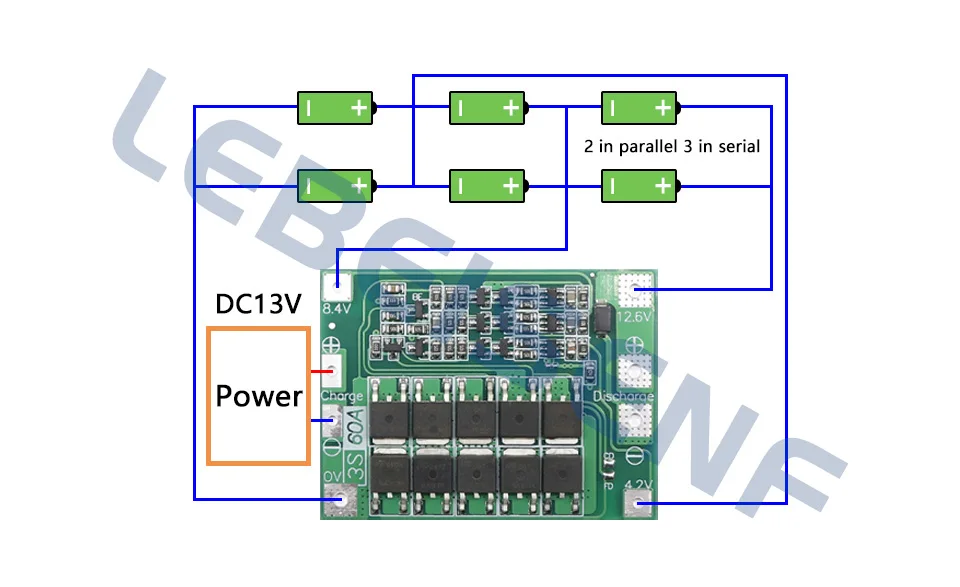

( 2 ) Connect the 13V power supply to the charging end of the board and start charging.
( 3 ) The board will detect the total series voltage of the three groups of batteries . When the voltage reaches 12 8V , the board will Turn off the battery charging circuit , this is the overcharge protection.
( 4 ) When the battery pack voltage drops below 12 3V , the overcharge protection contacts and the board will open again The battery charging circuit is overcharged.
( 5 ) If the board turns on overcurrent / short circuit protection for some reason during charging , you To remove the connection on the load side , and then turn off the power and restart , you can cancel the overcurrent protection . You can also disconnect the load, wait a few seconds , and the overcurrent protection is automatically canceled.

B.DISCHARGE ( OVERDISCHARGE PROTECTION )

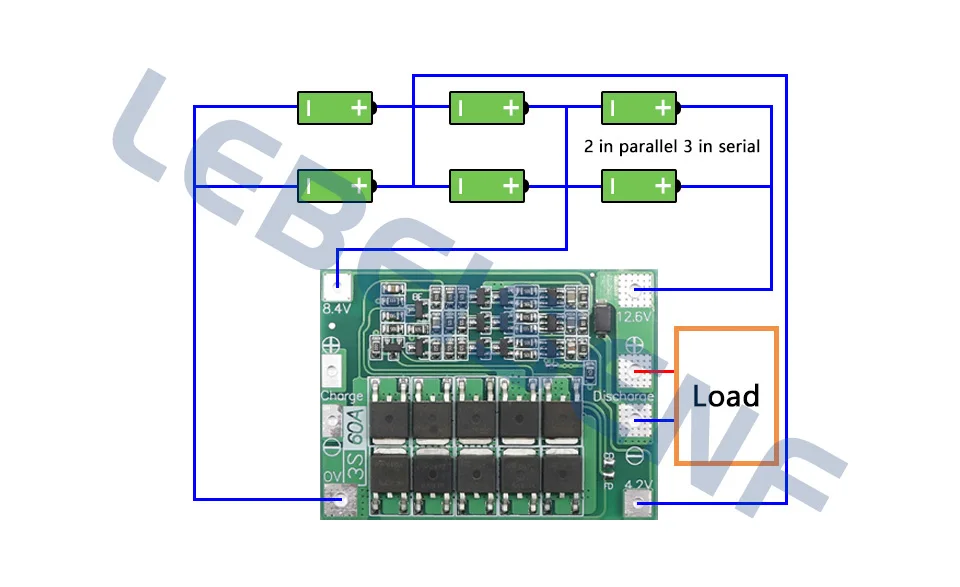

( 1 ) Wiring must be performed strictly in accordance with the figure above Use good wires and good contact because Even if the resistance is not too large , when a large current flows , it will cause a large voltage drop , and Generates a lot of heat , which affects the performance of the board.
( 2 ) Turn on the load , and the lithium battery pack supplies power to the load through the board With good heat dissipation , the board can Withstand a continuous current of 40A, if the heat dissipation is very good , even to reach 60A.
( 3 ) During the discharging process , when it is detected that the voltage of a certain group of batteries drops to the over-discharge voltage limit , the board Turn on over-discharge protection and turn off discharge . Note that the battery voltage detected during board discharge Will be lower than measuring the voltage across the battery with a multimeter, which is caused by the wires and the battery , So after the over-discharge protection is turned on , you use a voltmeter to measure the voltage across the battery , which is often higher than 2.4V . In addition the " " terminal on the board and the battery indirect line are not good , which will cause overdischarge . The protection voltage is higher than 2.4V.
( 4 ) When the battery voltage rises above 3V , the over-discharge protection is releasedIf over-discharge protection is not available In addition , the load can be disconnected andthe over-discharge protection will be released

C.OVERCURRENT PROTECTION

When the current is too large , the board turns on overcurrent protection , the line connection is disconnected , and the charging or Discharge.
SUCCESSFUL START OF ELECTRIC DRILL CONDITIONS
( 1 ) The discharge current of the battery must reach the minimum starting current of the electric drill
( 2 ) The connection between the battery pack and the protection board should be as short as possible , and the wire core should be as thick as possible
( 3 ) Other conditions are found and supplemented separately
