KBU1510 — 15A 1000V Single-Phase Bridge Rectifier

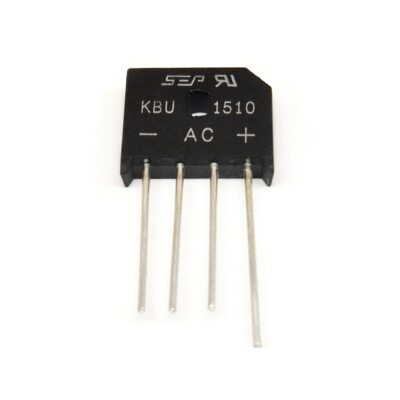

The KBU1510 is a high-current single-phase full-wave bridge rectifier housed in the rugged KBU (in-line) package. It integrates four rectifier diodes into a single module, converting AC to pulsating DC in one compact, easy-to-mount part. Rated at 15A average forward current and 1000V peak reverse voltage, it's built for power supplies, battery chargers, motor drives, and inverter front-ends where reliability under continuous load matters. The package features a metal-backed body with a central mounting hole for direct heatsink attachment, letting it handle its full current rating with proper thermal management. Terminals are clearly marked ( for AC inputs, + and − for DC outputs), and the solder/quick-connect leads make it straightforward to wire into a PCB or terminal block.

Electrical & Mechanical Specifications

==================================================================

Parameter Symbol Value Unit

==================================================================

Max Recurrent Peak Reverse Voltage VRRM 1000 V

Max RMS Bridge Input Voltage VRMS 700 V

Max DC Blocking Voltage VDC 1000 V

Average Forward Rectified Current IO 15 A

(per bridge, Tc = 55°C, w/ heatsink)

Peak Forward Surge Current IFSM 300 A

(8.3 ms single half-sine, per element)

I²t Rating for Fusing (t < 8.3 ms) I²t 373 A²s

Max Forward Voltage Drop (per element) VF 1.1 V

(at 7.5 A DC)

Max Reverse Leakage @ VDC, Tj=25°C IR 10 µA

Max Reverse Leakage @ VDC, Tj=125°C IR 500 µA

Typ. Thermal Resistance (J-to-Case) RθJC ~1.9 °C/W

Operating Junction Temperature TJ -55…+150 °C

Storage Temperature Range TSTG -55…+150 °C

Isolation Voltage (case, where rated) VISO ~2500 VAC

Package KBU — —

Mounting #8 / M4 screw through hole

==================================================================

Note: values are typical of the KBU1510 across common manufacturers (Vishay, Diotec, DC Components, Taiwan Semiconductor, MIC). Verify against the exact brand you stock, as surge and leakage figures vary slightly.

Typical Applications

• Linear and switch-mode power supply input rectification

• Battery chargers and DC power adapters

• DC motor drives and speed controllers

• Welding equipment and industrial power converters

• UPS and inverter AC-to-DC front-ends

• General-purpose high-current AC-DC conversion

Safety & Usage Cautions

• Use a heatsink for any load above ~4–5A. Without one, the 15A rating cannot be reached and the part will overheat. Apply thermal paste at the mounting surface.

• Observe polarity — the two ~ terminals take AC; + and − deliver DC. Reversing the DC output into a load can destroy connected circuitry.

• Do not exceed 1000V peak reverse voltage; add a transient/MOV or snubber where the mains can spike.

• Provide inrush protection (NTC thermistor or series resistor) when driving large capacitor banks to stay within the 300A surge limit.

• Keep junction temperature below 150°C; derate current at high ambient temperatures.
